During my day job, I was assisting a developer remotely develop on an EC2 instance using the VSCode extension “Remote - SSH”. As a Security Engineer™, I would prefer not to open any SSH ports to the internet, or at all, especially since we already have SSM Session Manager setup.

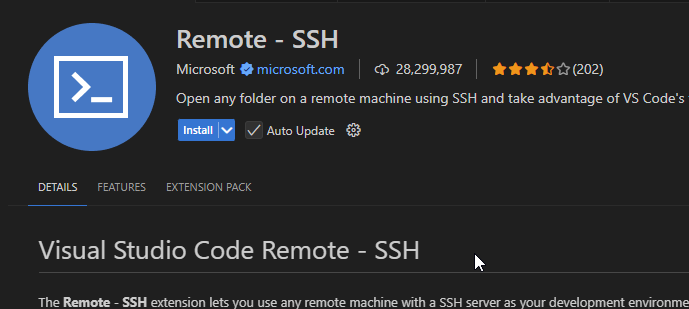

VScode Extension Remote SSH

I stumbled upon this article Transparently develop on an EC2 instance with VSCode Remote SSH — through SSM by Dennis Bappert which goes through the steps of setting up SSH over SSM. This made me wonder if you could use the SSH tunnel for a SOCKS proxy, local/remote port forwarding for Post-Exploitation activities.

The answer is yes, and it’s quite simple.

Setup and Pre-Requisites

  1. SSM Session Manager is setup on the EC2/Account.
  2. The Session Manager Plugin is setup on your machine.
  3. SSH keys are setup on the EC2 and your machine. This can be done over an SSM session with aws ssm start-session.
  4. Your SSH config looks like the SSH config below
Host myec2box
    User ssm-user
    IdentityFile ~/.ssh/myec2box.id_rsa
    ProxyCommand aws ssm start-session --target i-05108aba3d4c4d704 --profile default --region us-east-2 --document-name AWS-StartSSHSession --parameters portNumber=%p

Note: The instace ID will need to be changed to your instance ID.

  1. Your AWS cli is configured with your target credentials. e.g. ENV vars or IAM User creds.

SOCKS over SSH over SSM

If the setup and pre-requisites are followed, then all you have to do now is do SOCKS (Dynamic Port Forwarding) as normal with SSH client.

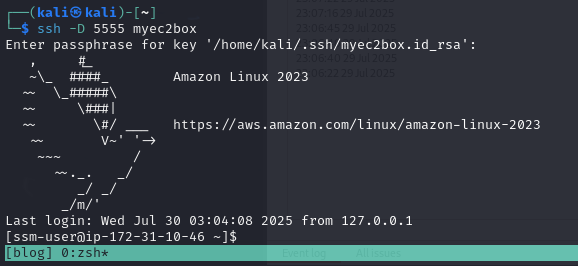

ssh -D 5555 myec2box

SOCKS

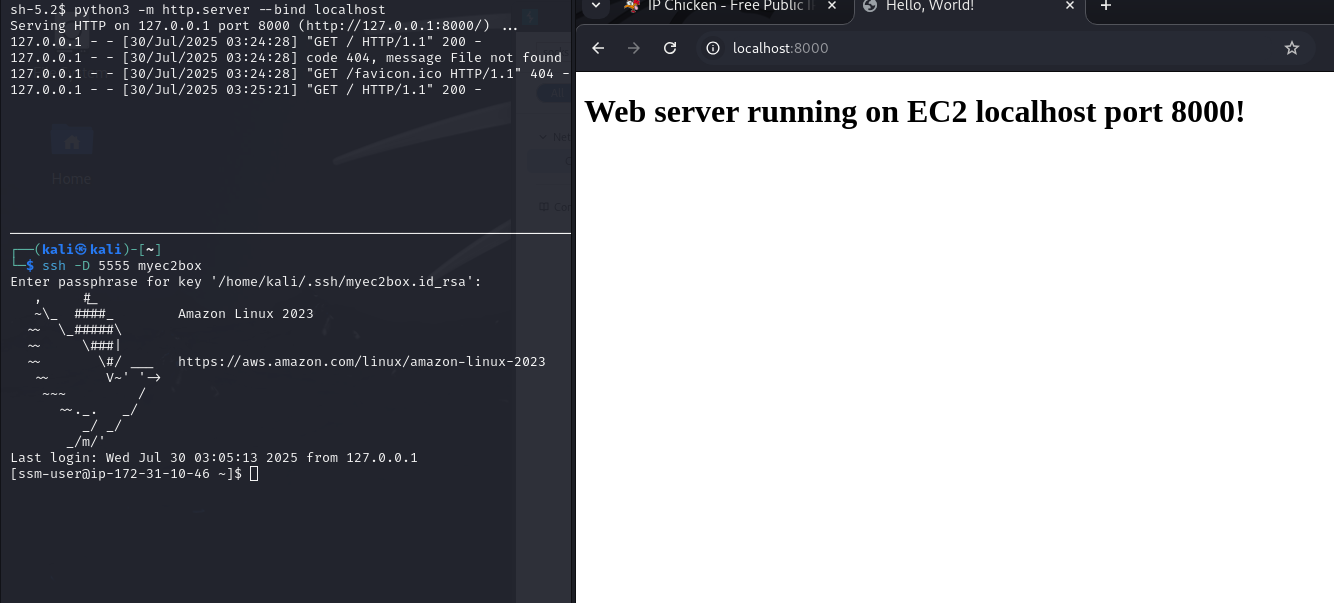

Lastly, connect to the SOCKS proxy on the localhost/port. The example below has Burp Suite configured to use SOCKS proxy to connect to a Python web server running on localhost:8000 on the EC2.

SOCKS

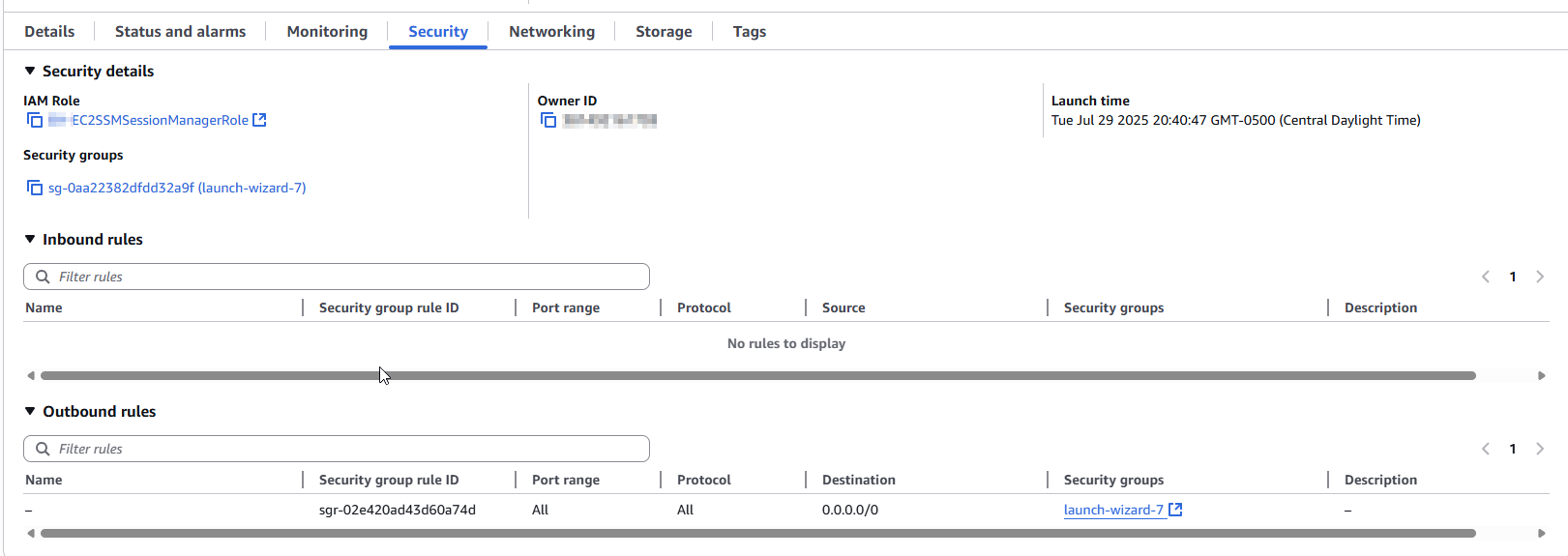

All of this was done without modifying or even having a single Security Group inbound rule. SG
